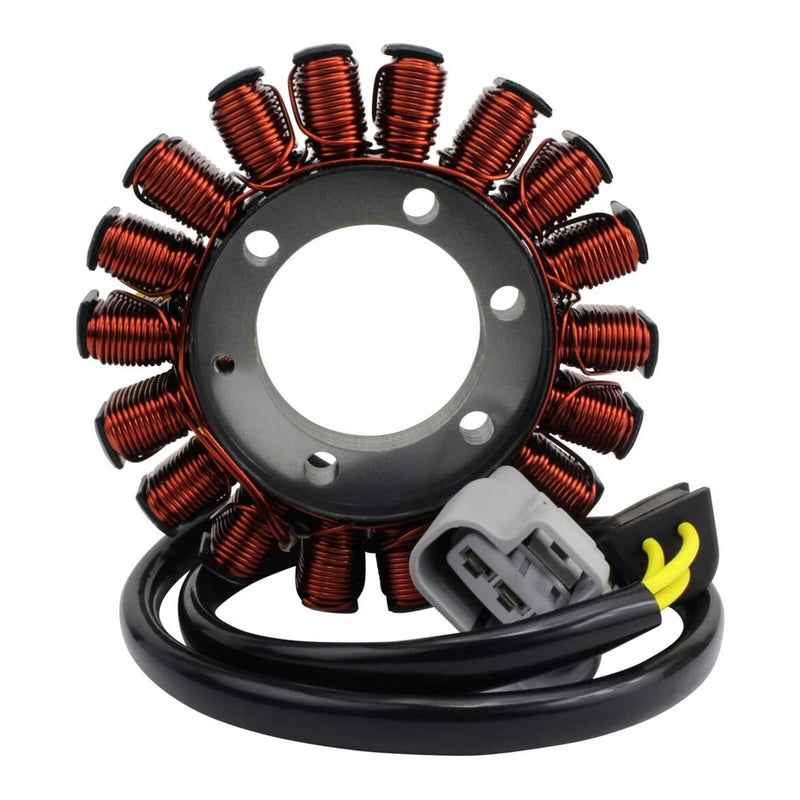

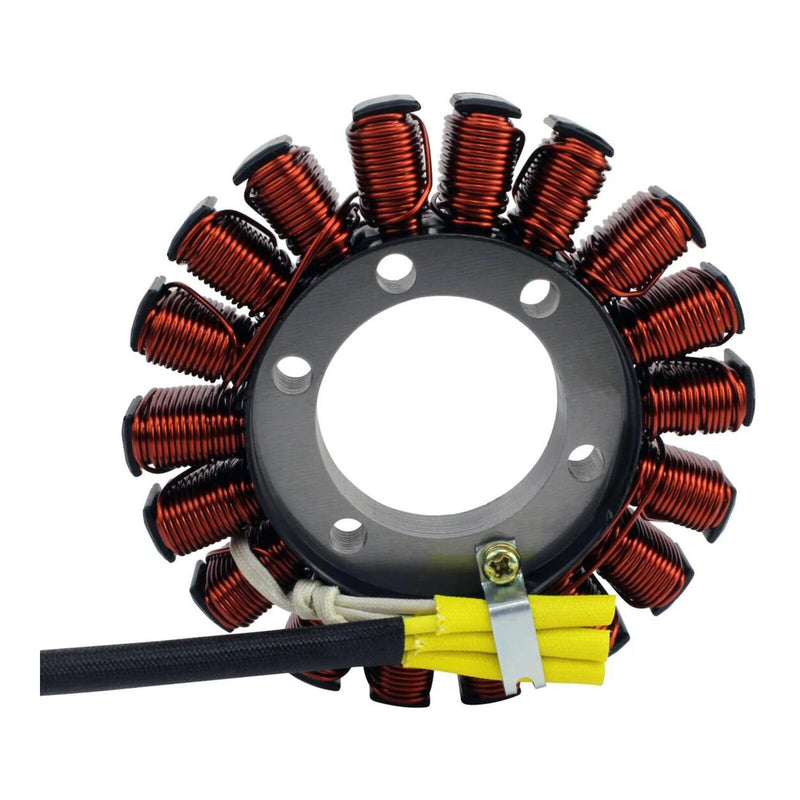

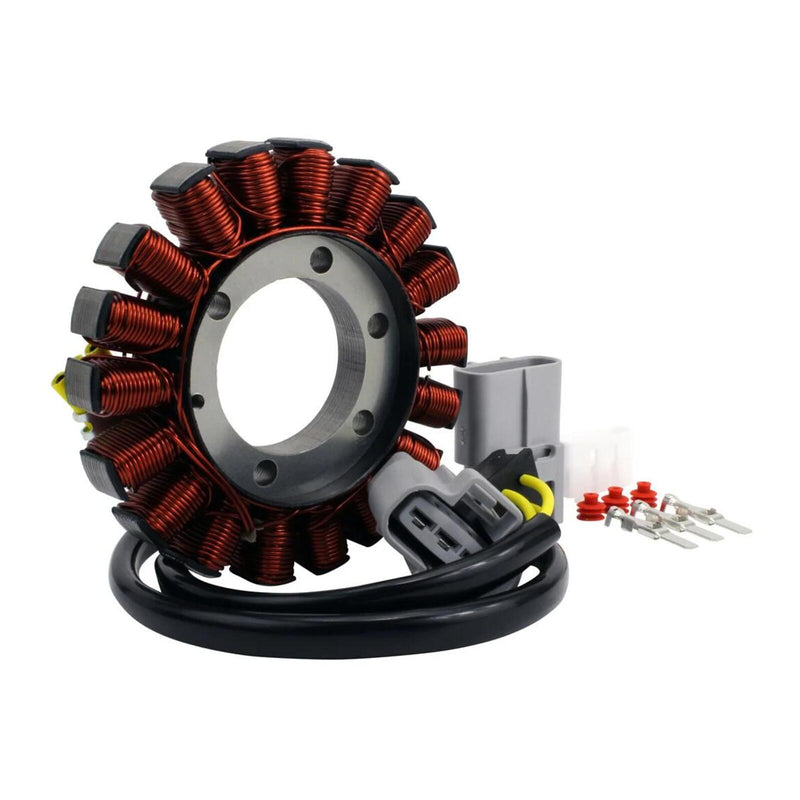

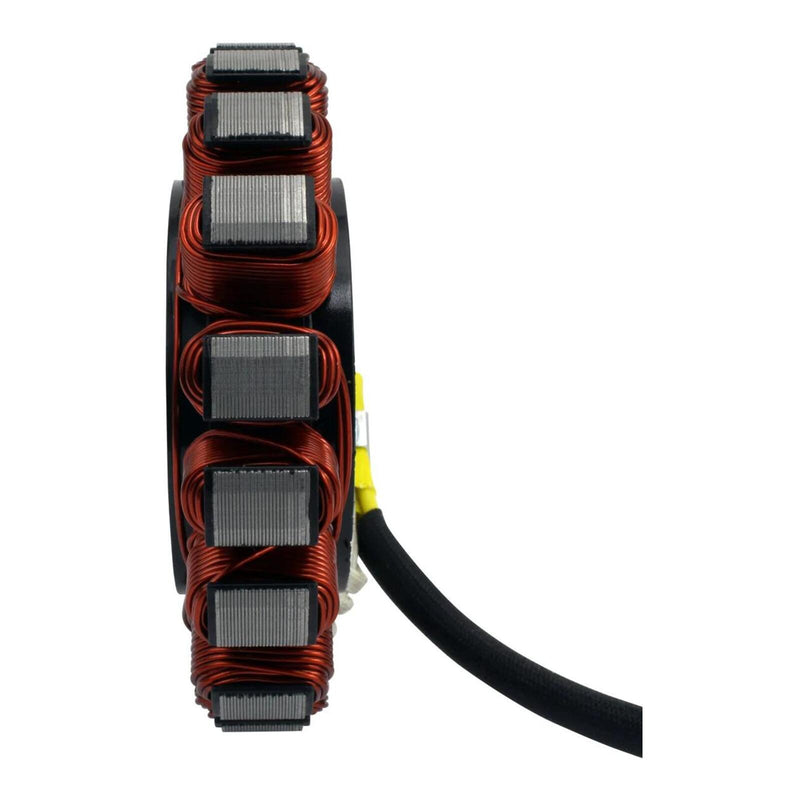

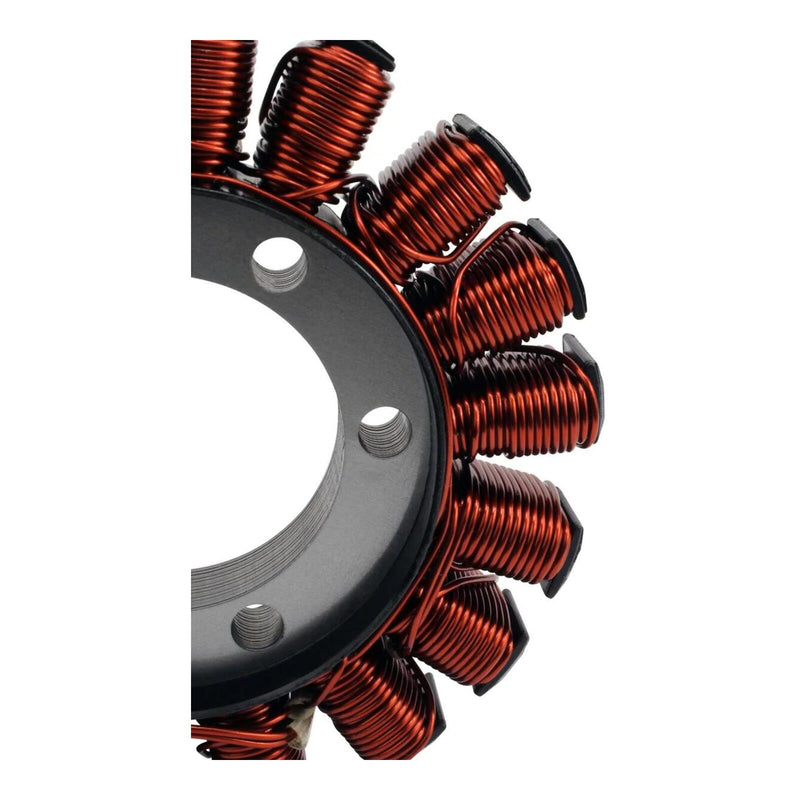

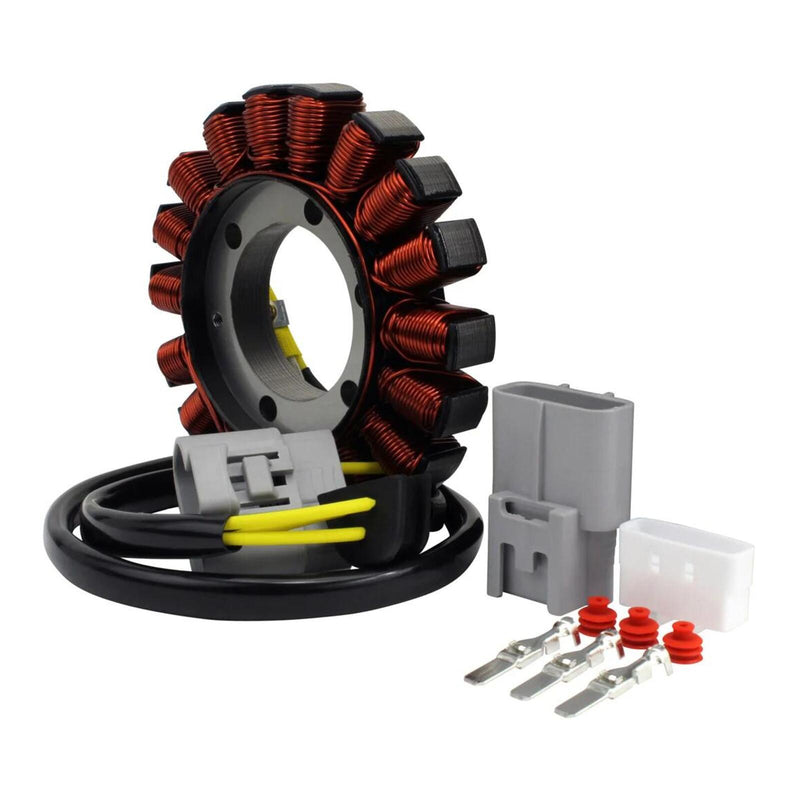

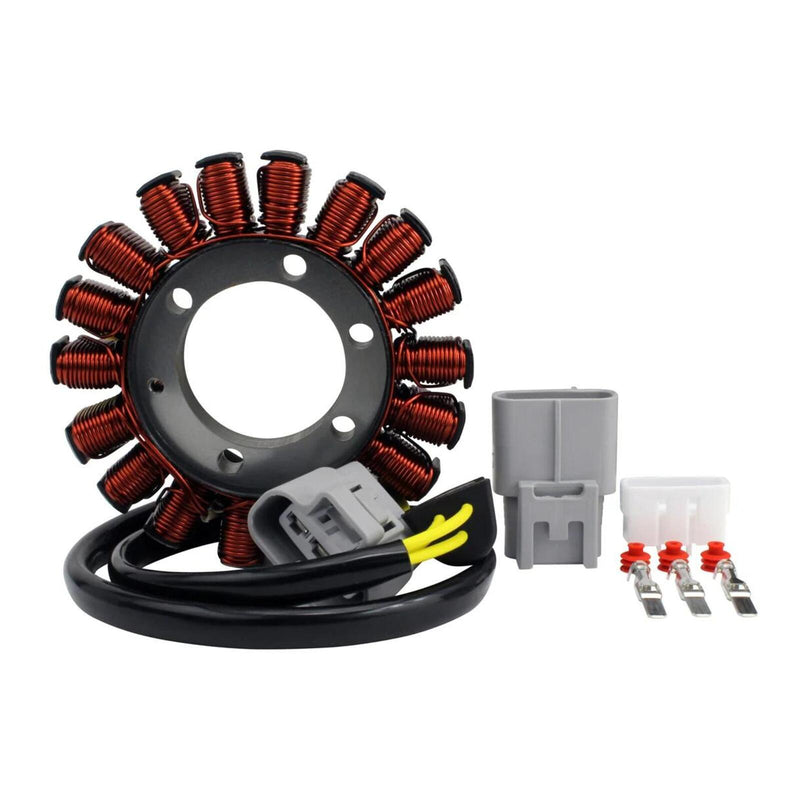

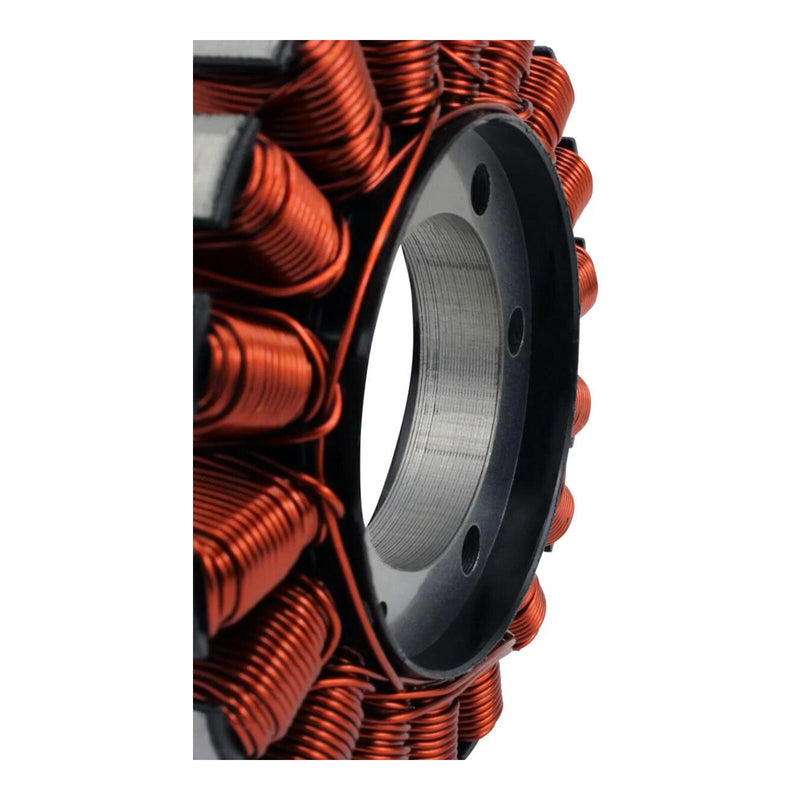

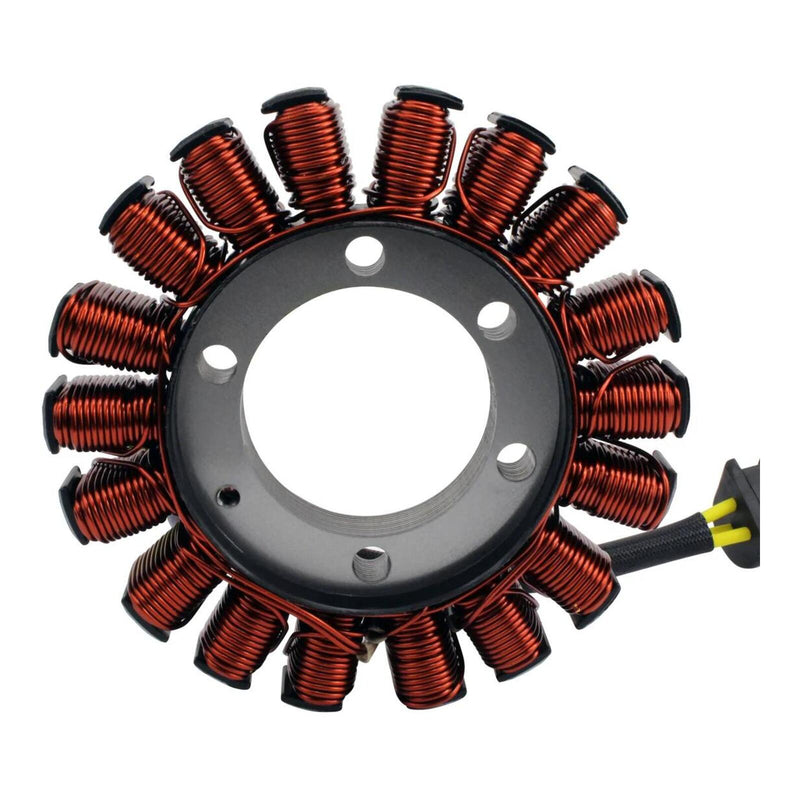

Improved Stator KTM Adventure/R & Super Duke Model

Brand-new aftermarket improved stator.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of thin silicone steel laminations.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• High temperature wires.

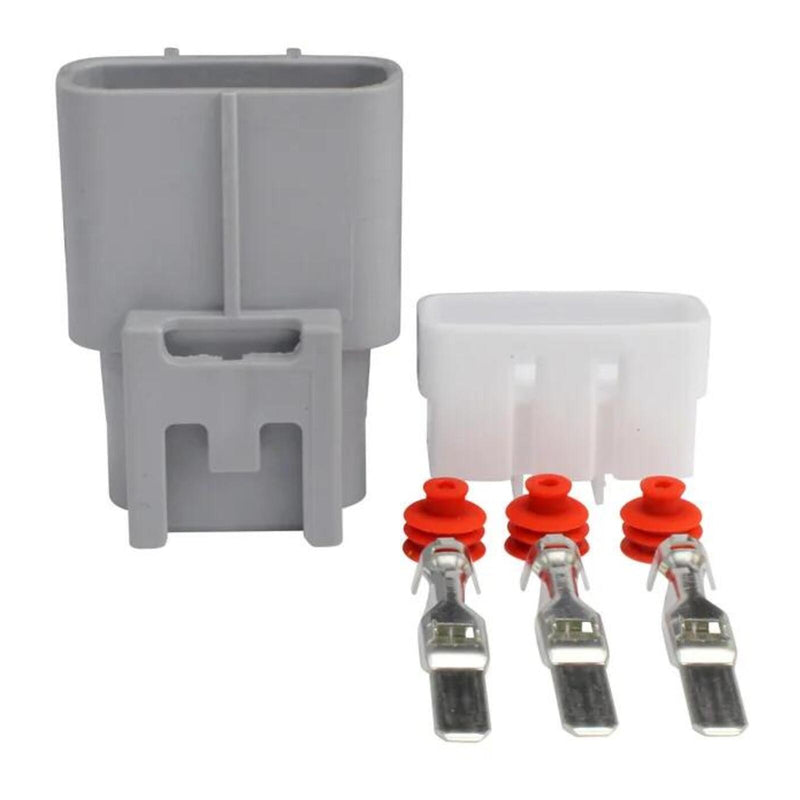

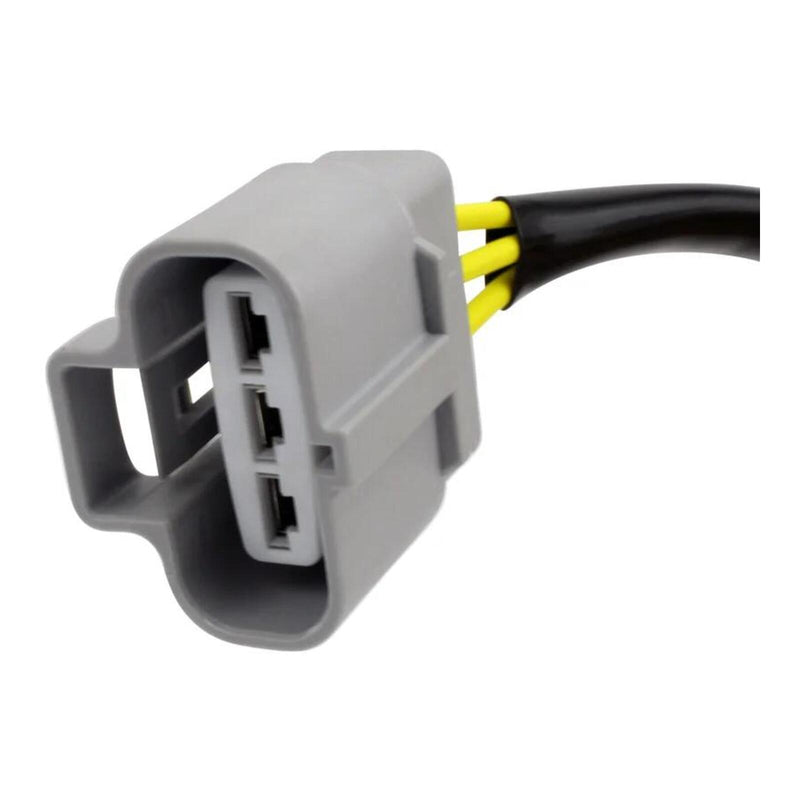

• Connectors included.

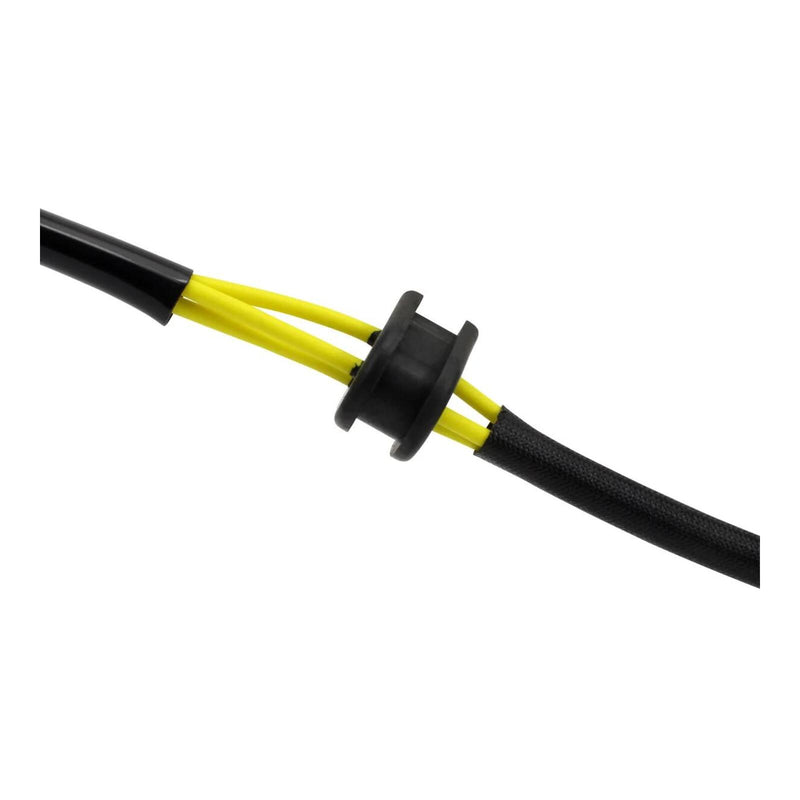

• Rubber grommet included.
• All products shipped are tested.

Specifications:

Di mensions

• Interior diameter: 42 mm
• Exterior diameter: 107 mm
• Thickness: 12 mm
• Length of wires stator to grommet: 110 mm
• Length of wires grommet to plug: 600 mm

Other specifications

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire-to-wire resistance

• Alternator: Yellow to Yellow = 0.6 ohms +/-20%
• Alternator: Yellow to ground = O.L
