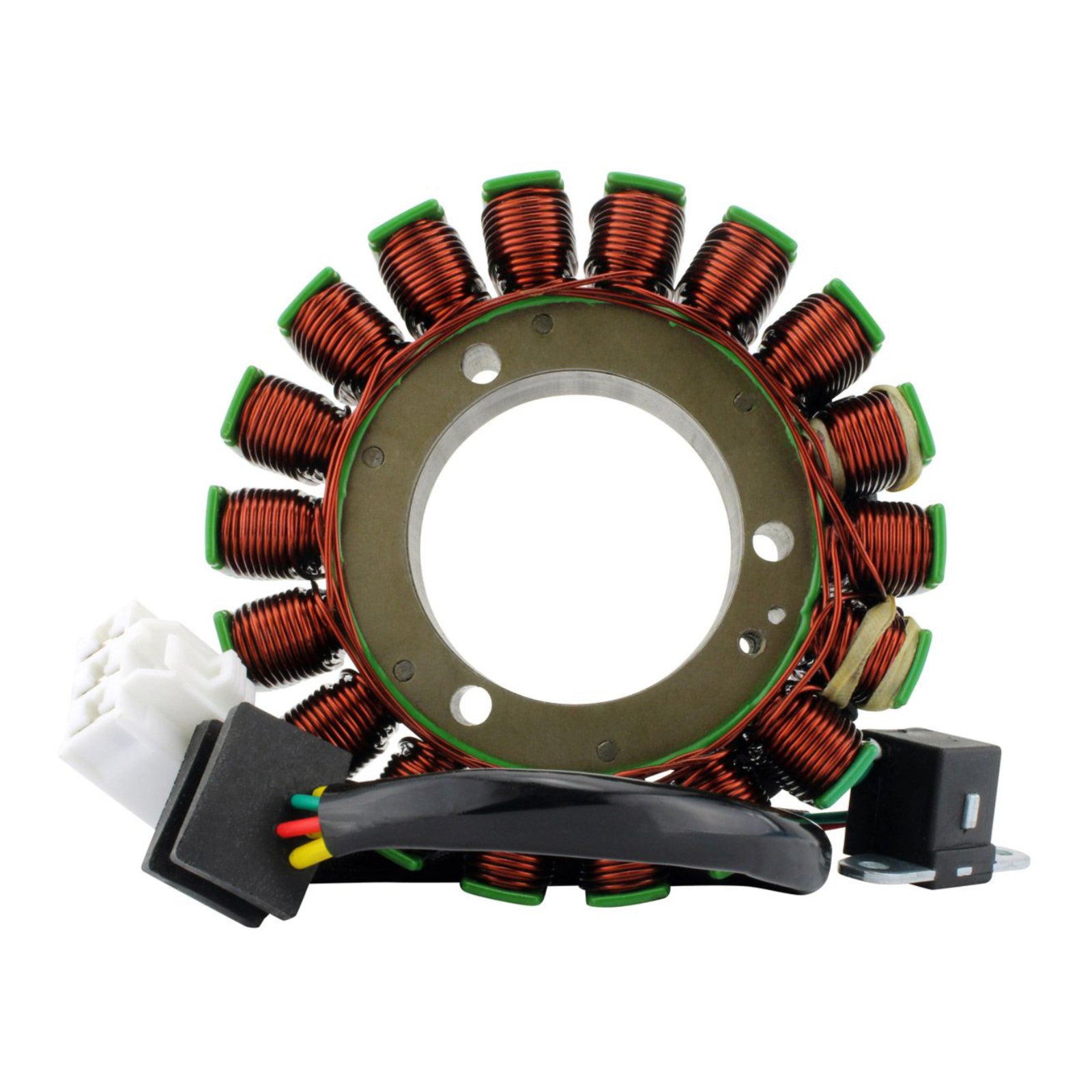

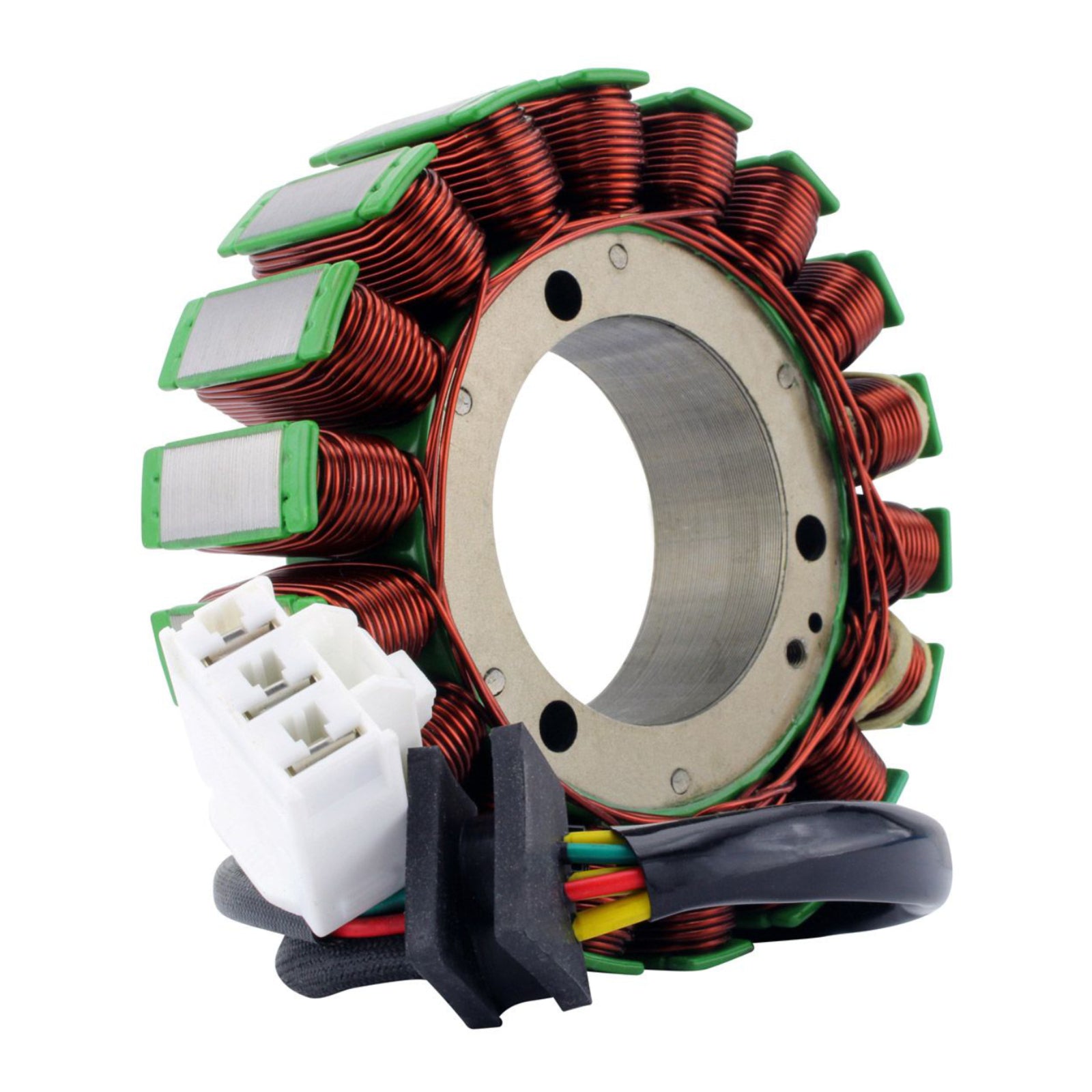

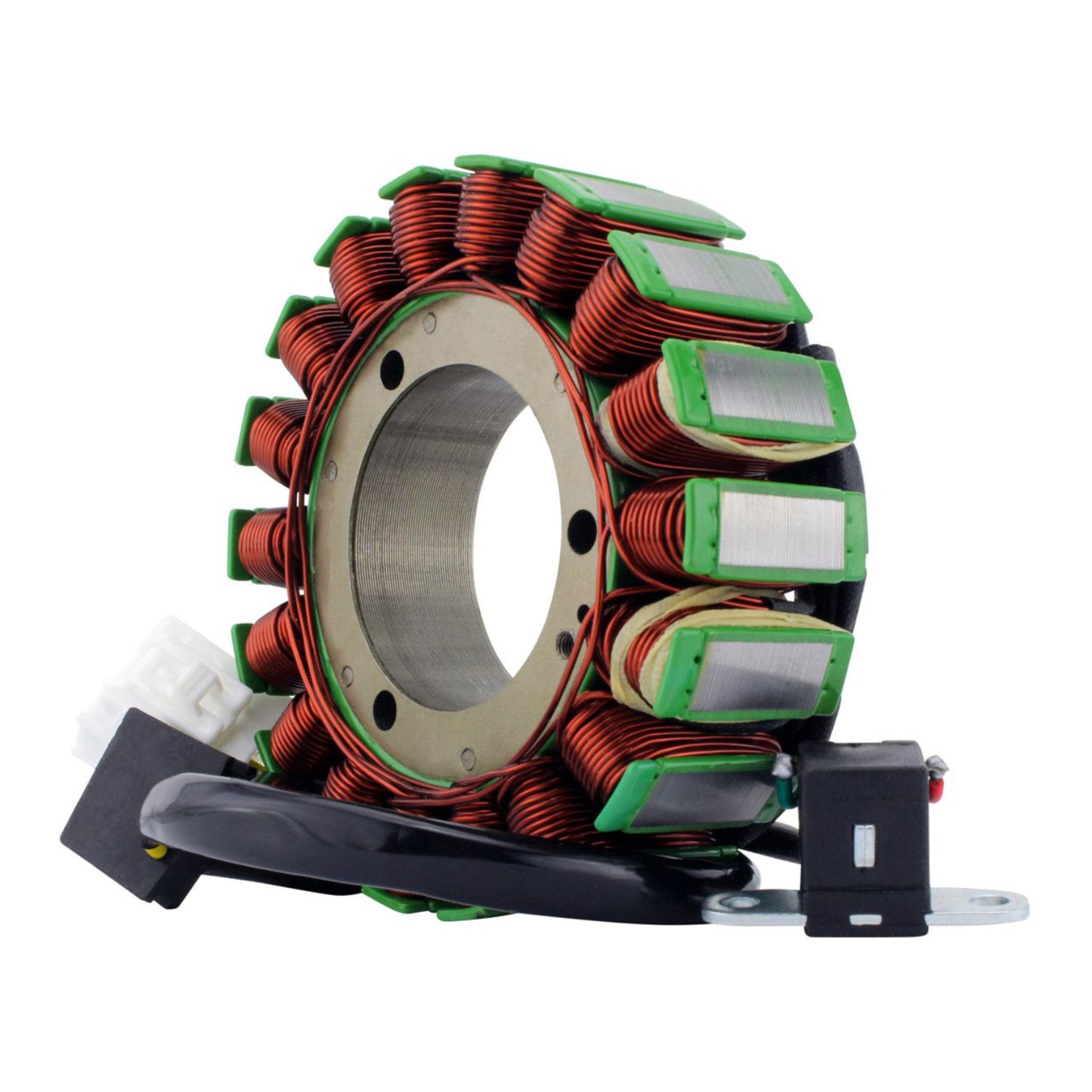

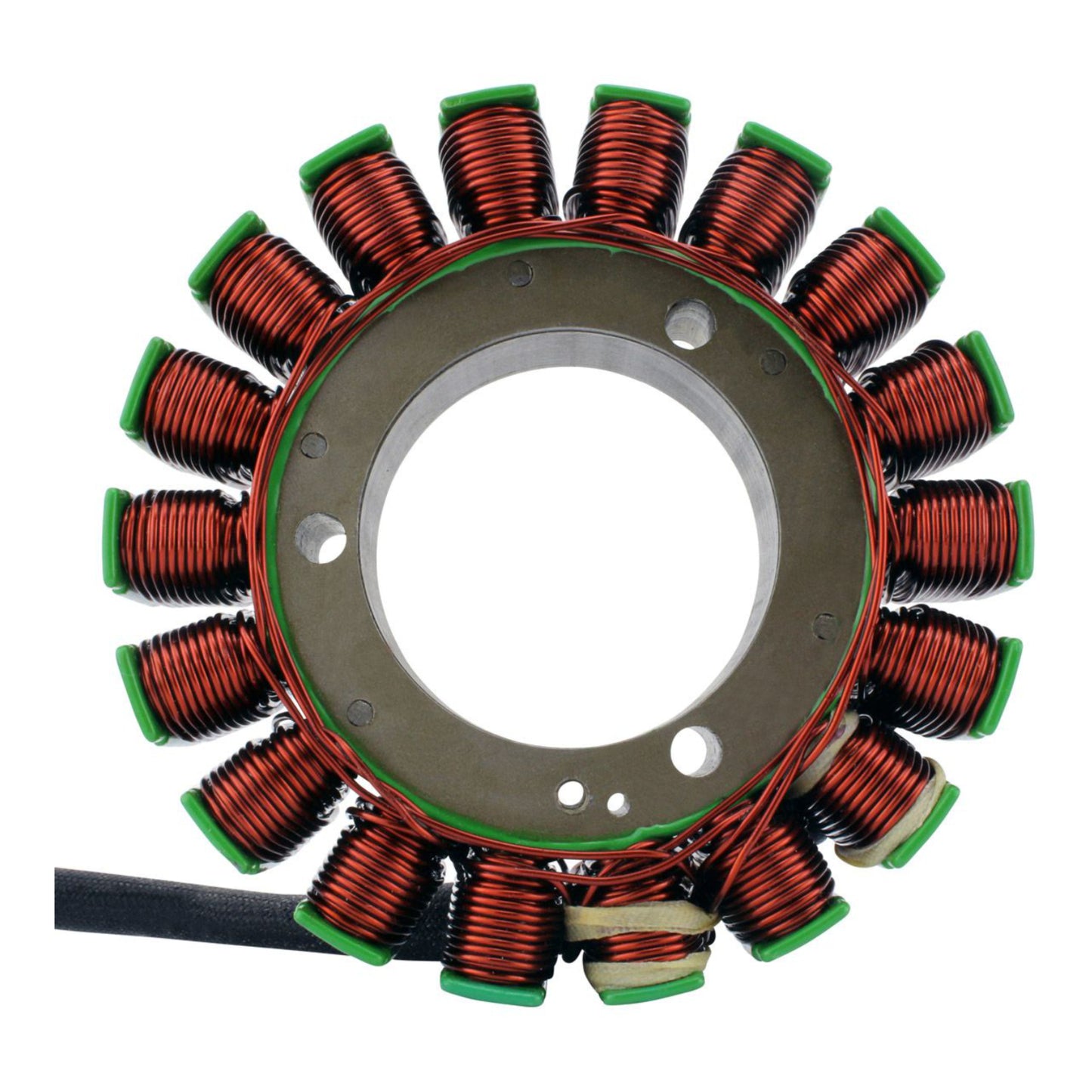

Generator Stator Suzuki DL V-Strom '14-'16' '18-'19'

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 54mm
• Exterior diameter: 119mm
• Thickness: 26mm
• Length of wires stator to grommet: 170mm
• Length of wires grommet to plug: 270mm
• Length of pickup coil's wire to grommet: 150mm

Other specifications:

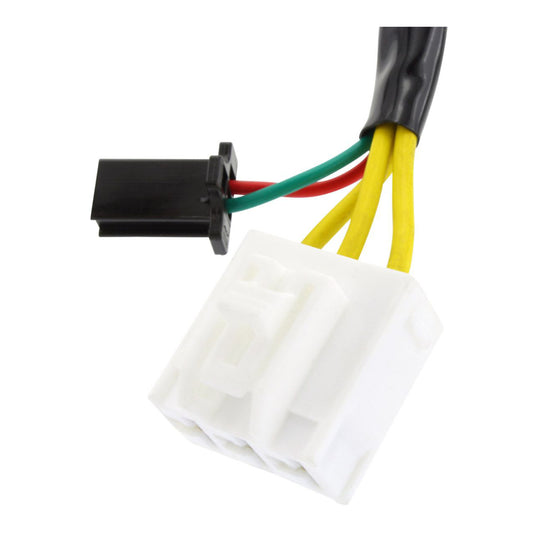

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.6 ohms +-20%
  • Alternator: Yellow to ground = O.L
  • Pickup: Green to Red = 192 ohms +-20%

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

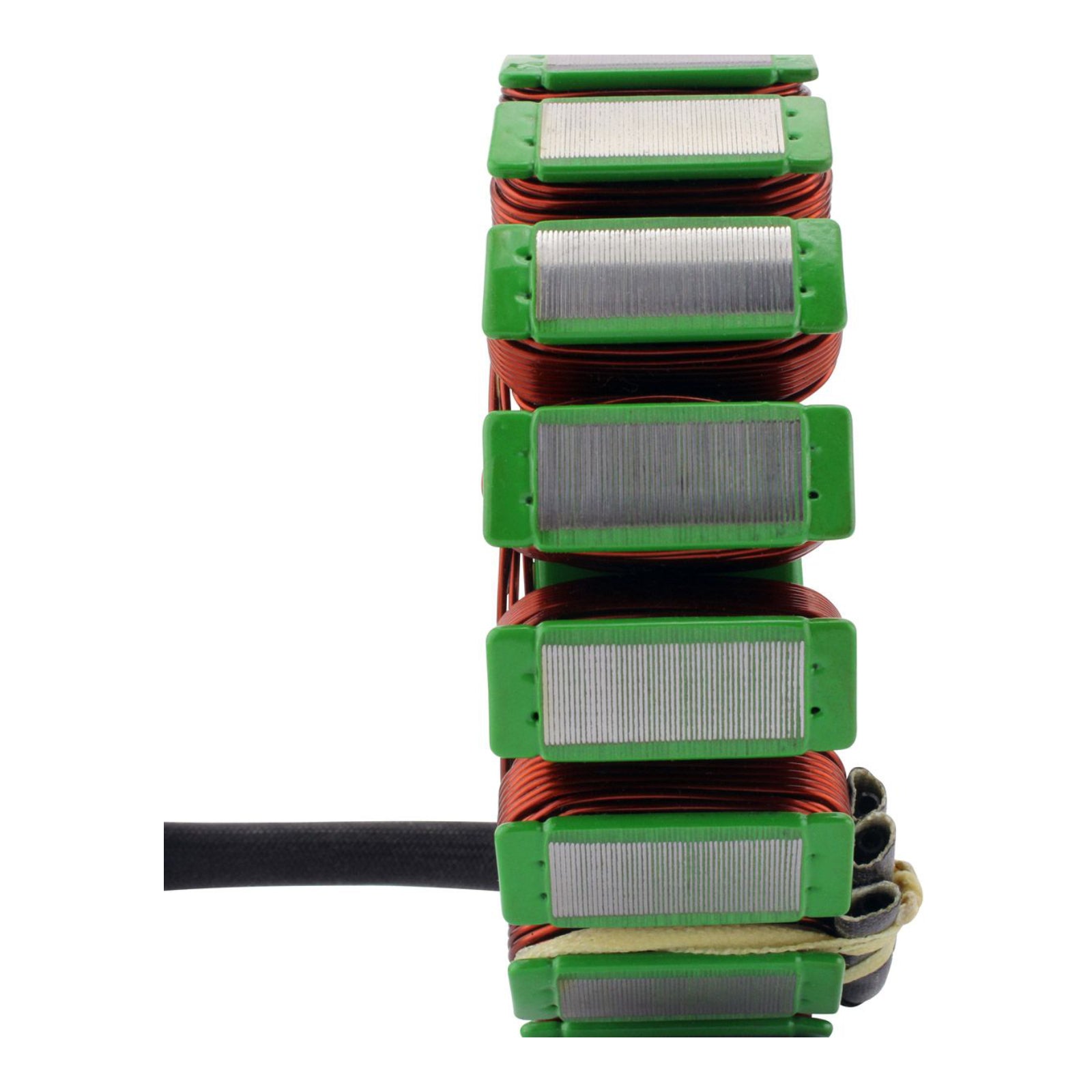

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

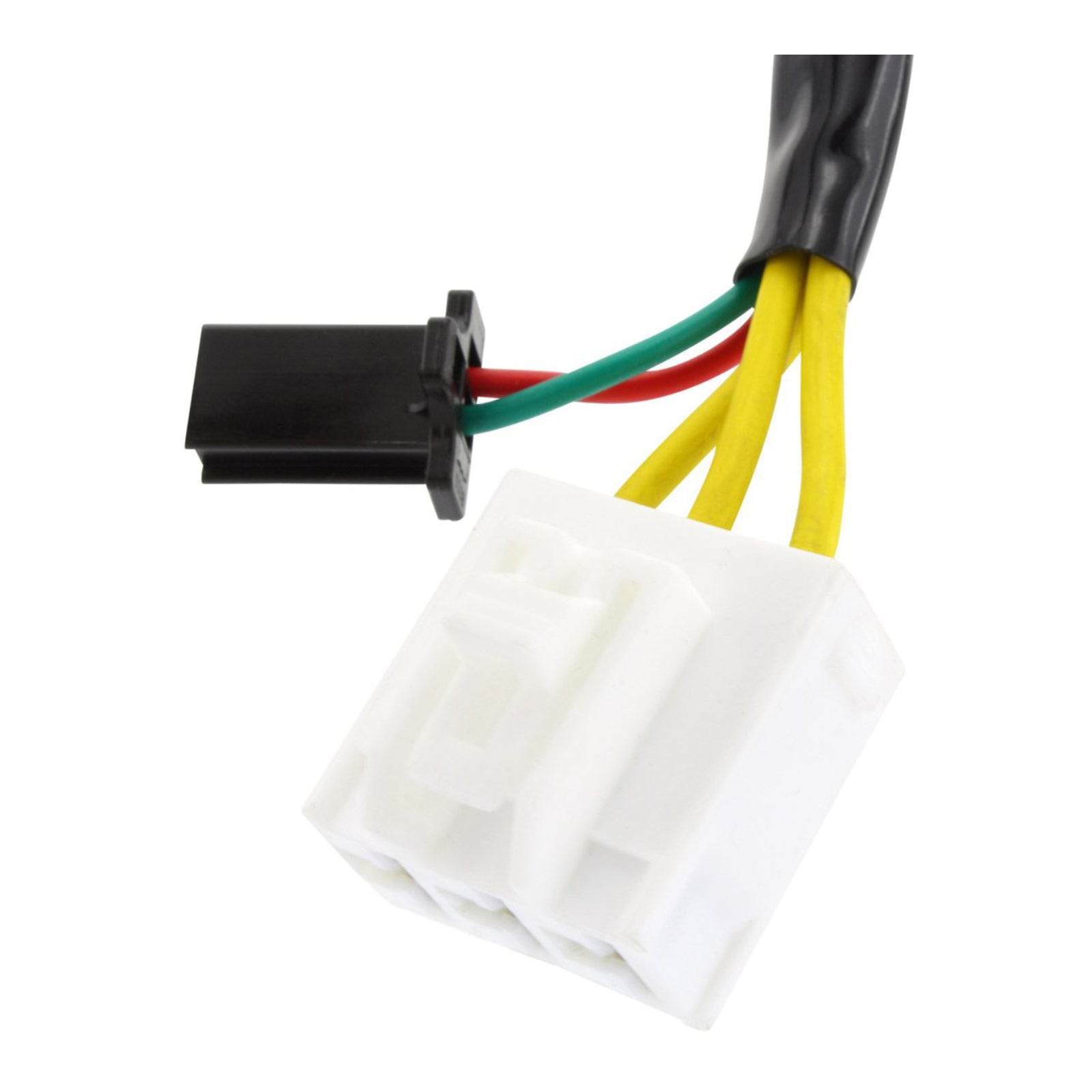

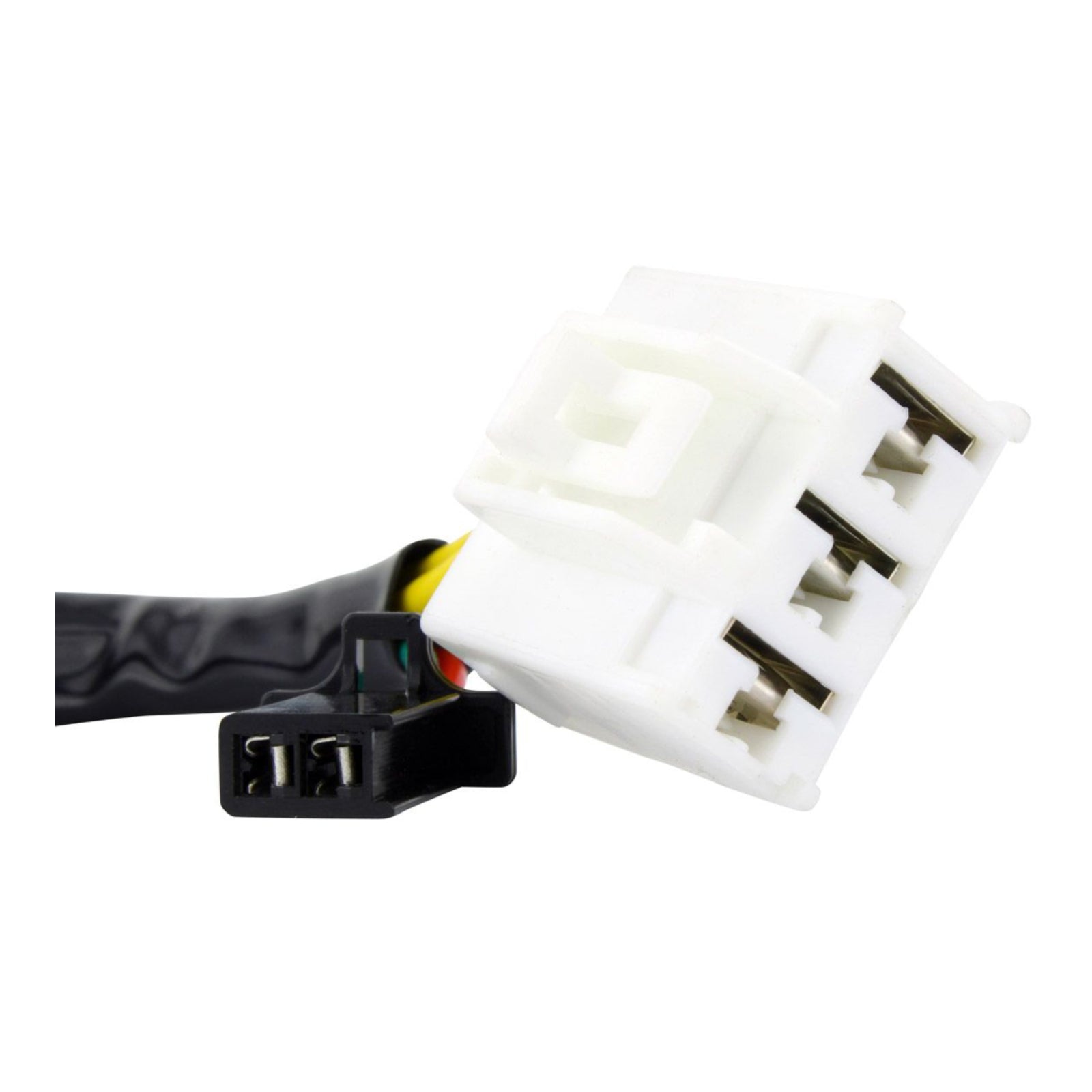

• Connectors included

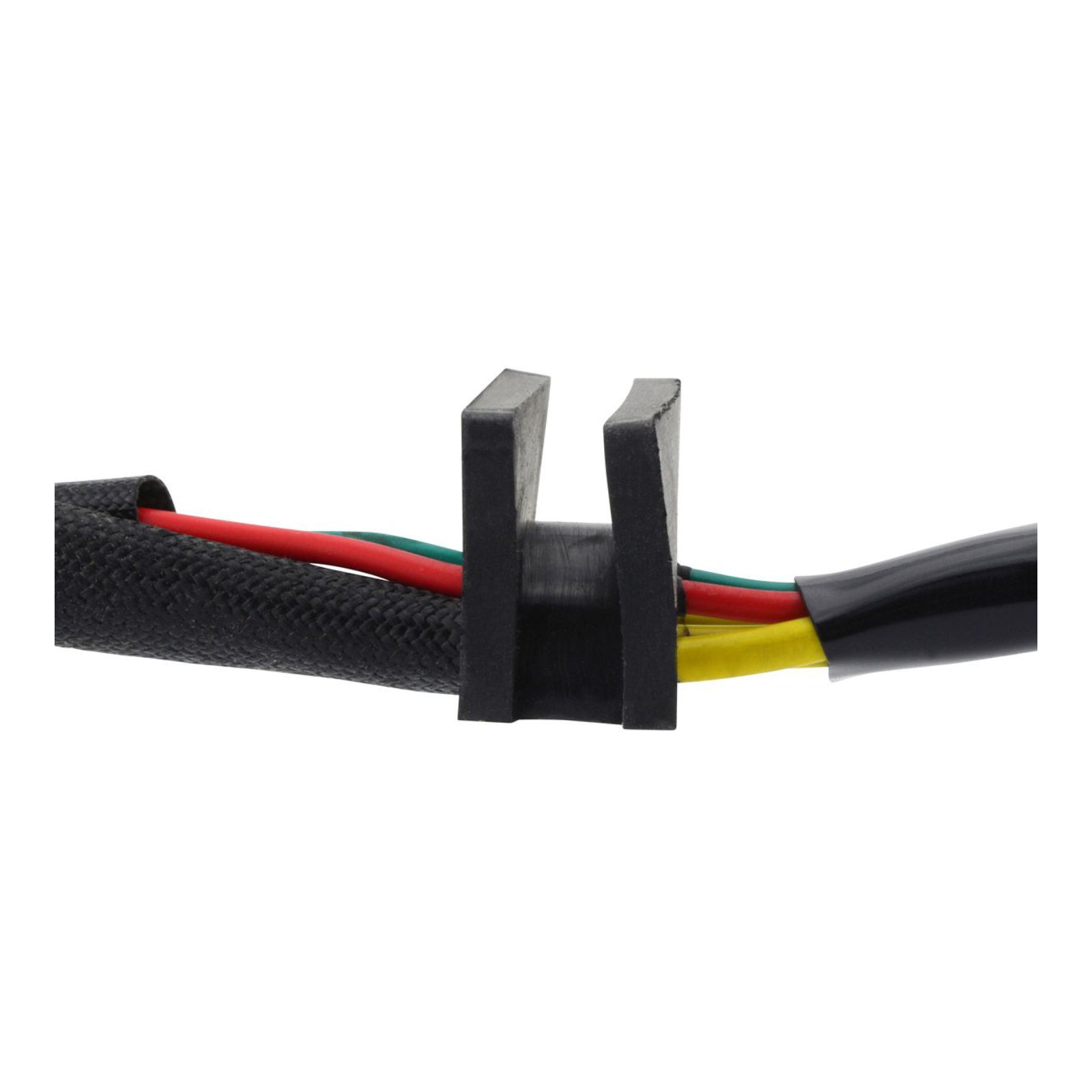

• Rubber grommet included
• All products shipped are tested
