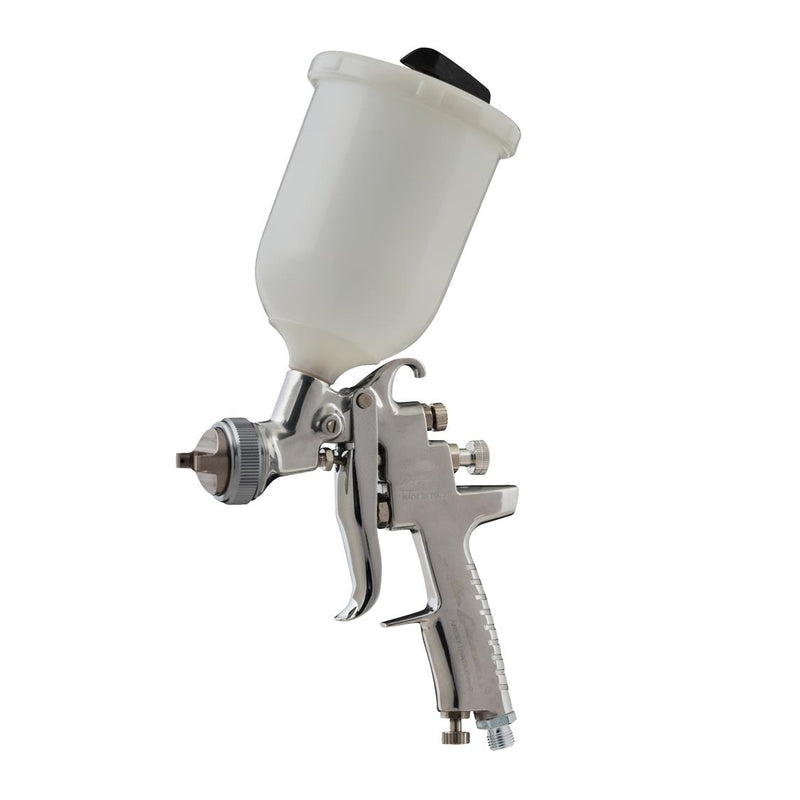

IWATA GRAVITY SPRAYGUN AZ3 HTE2

AZ3 Series 2 HTE Spray Gun complete with 600ml Pot The AZ3HTE is an affordable high transfer efficiency centre post gravity feed spray gun. The perfect gun for primer and heavy bodied materials, the AZ3HTE is a must have in every bodyshop. One of the many upgrades the re-modelled AZ3HTE features is a separation of the air control and your air hose, along with a newly designed air cap and a polished body for easier cleaning and maintenance. - High transfer efficiency - New Lightweight design - Excellent manoeuvrability - Fine atomization - Easy to clean. - Body coated in PTFE anti-adherence - Ideal for waterborne coatings - Stainless steel nozzle and needle - New concept multi hose air cap - PTFE needle packing - Low air consumption - Gun weighs only 440g

Part No.	Fluid Nozzle Size [mm]	Air Pressure@ Gun Inlet [bar]	Air Consumption [l/min]	Fluid Output [ml/min]	Fan Pattern [mm]	Pot type / size	Capacity [ml]
AZ3HTE213C	1.3	2	200	140	240	PCG.6AG	600
AZ3HTE215C	1.5	2	200	160	260	PCG.6AG	600
AZ3HTE218C	1.8	2	205	250	300	PCG.6AG	600
AZ3HTE220C	2.0	2	205	300	340	PCG.6AG	600
AZ3HTE225C	2.5	3	279	450	360	PCG.6AG	600
AZ3HTE230C	3.0	3	288	560	400	PCG.6AG	600
AZ3HTE235C	3.5	3	307	600	420	PCG.6AG	600
