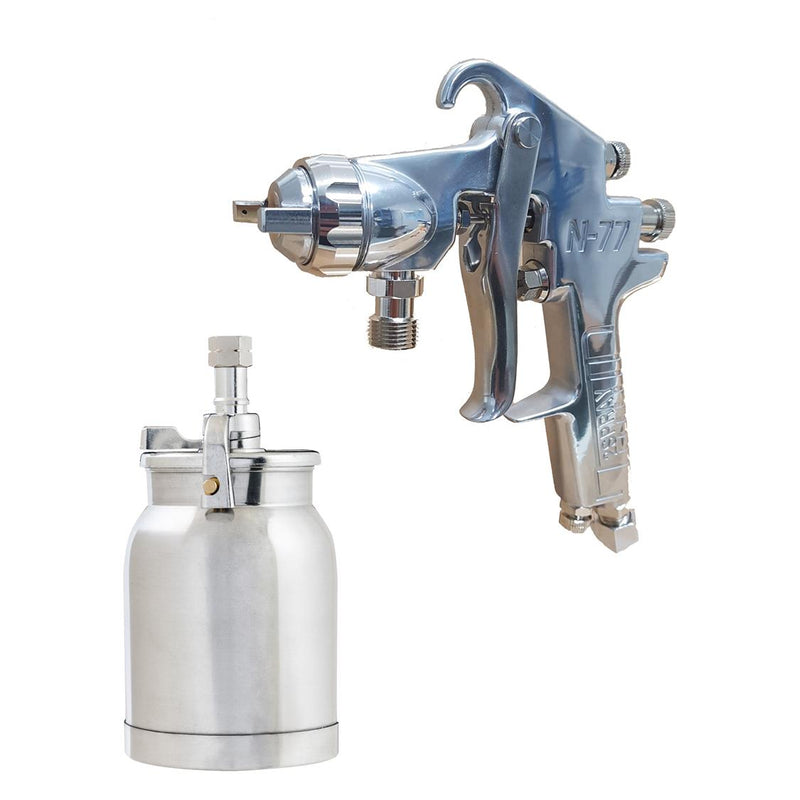

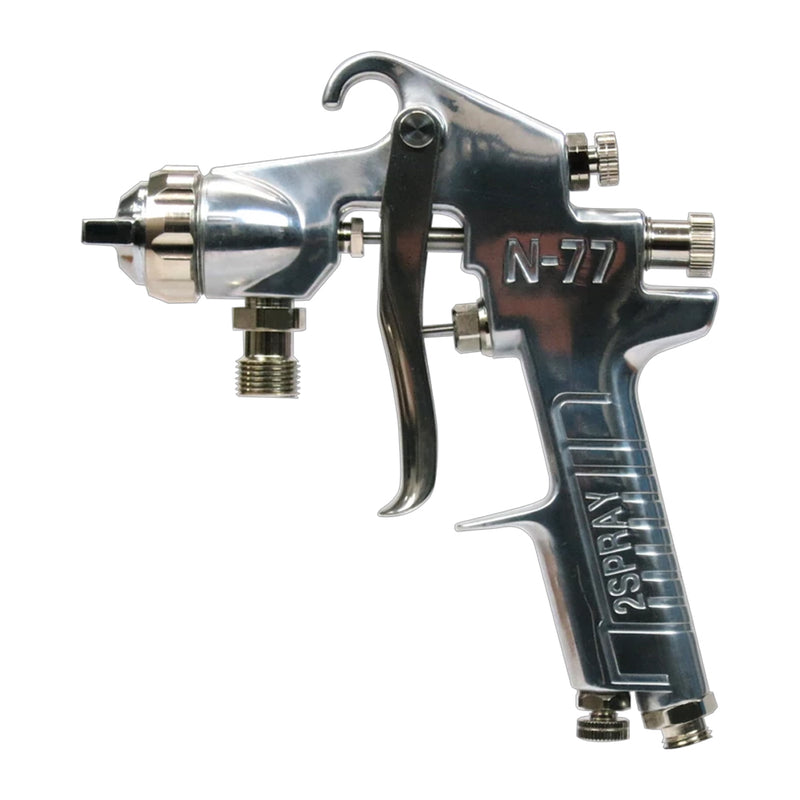

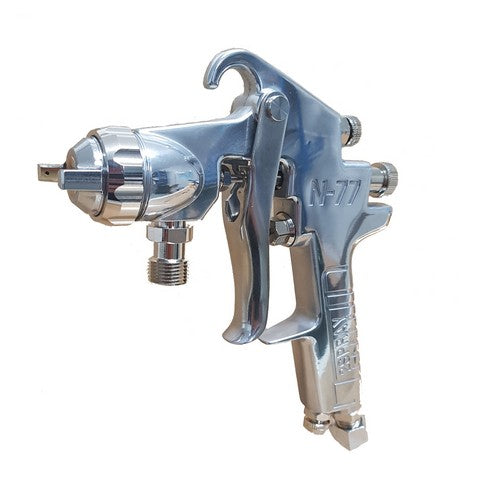

IWATA 2SPRAY SUCTION SPRAYGUN N77

N77 Suction Gun Only A well balanced general purpose spray gun Polished body for easy cleaning Built-in air adjuster Comfortable to use Excellent manoeuvrability Ideal for Medium to Large paint jobs

Part No.	Fluid Nozzle Size [mm]	Air Pressure @ Gun Inlet [bar]	Air Consumption [l/min]	Fluid Output [ml/min]	Fan Pattern [mm]	Cap #	Pot type / size
N77.1	1.5	3.5	180	255	210	1	N/A
N77.11	1.5	3.5	290	255	260	11	N/A
N77.12	1.5	3.5	370	255	230	12	N/A
N77.2	2.0	3.5	250	245	255	2	N/A
N77.21	2.0	3.5	340	350	270	21	N/A
N77.3	2.5	3.5	325	435	280	3	N/A
